A low-cost, DDS-less "Software Defined Radio" full coverage receiver for all HF bands, used with powerful software on the PC for multi-mode operation
|

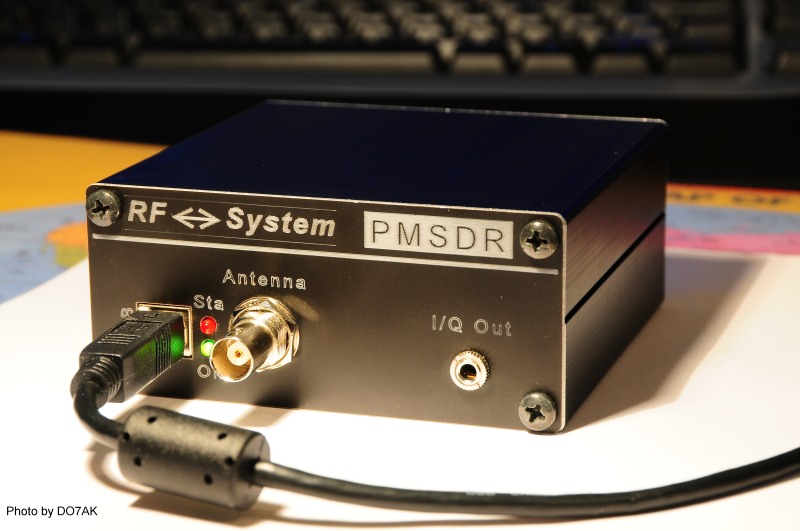

PMSDR Back view
|

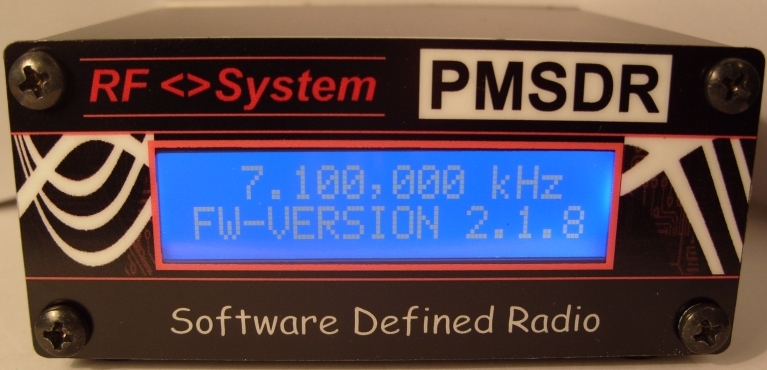

PMSDR Front view with LCD option ( 25/4/2012: New front plate). LCD show the tuned frequency from WinRad in real-time

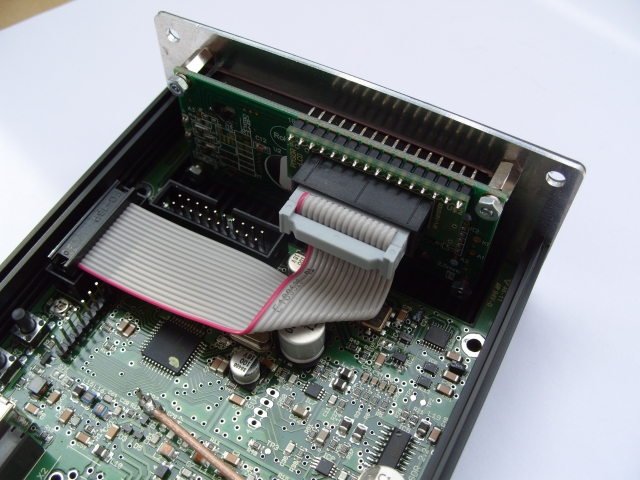

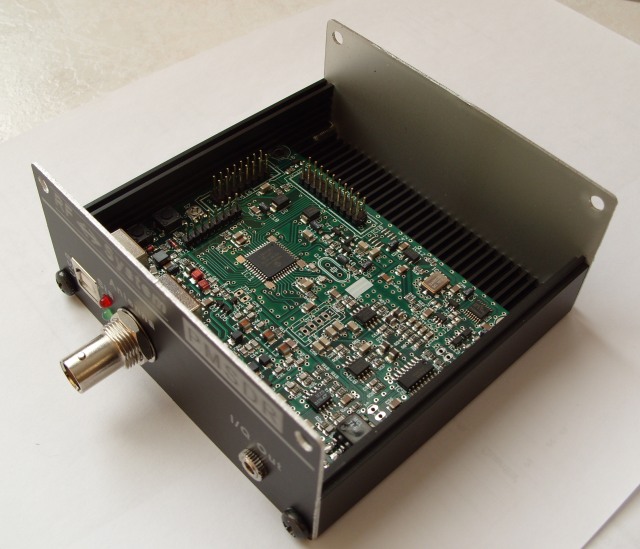

PMSDR Inside view + front view

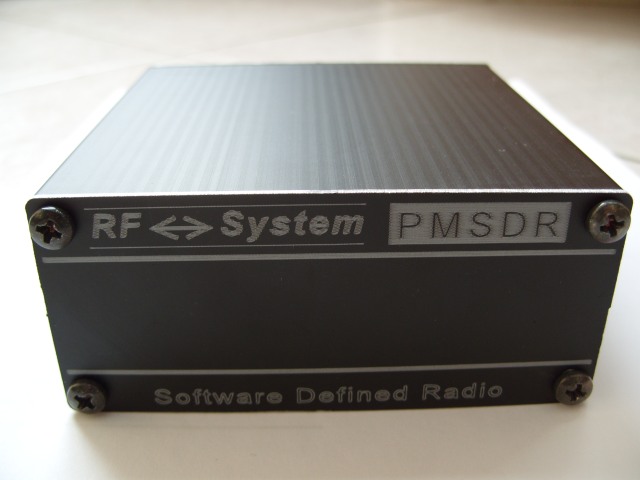

PMSDR view without LCD option
PMSDR view with LCD option

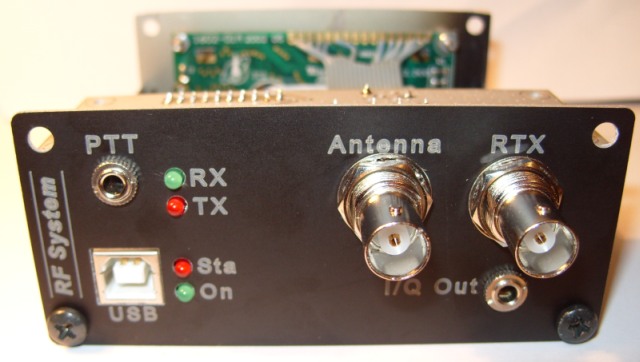

PMSDR Back view (with Switch board option)
PMSDR Back view (with Switch board as upgrade)

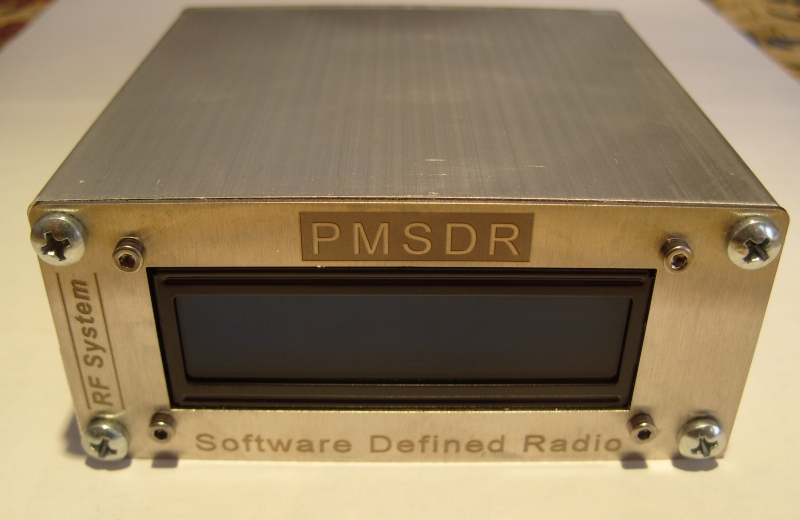

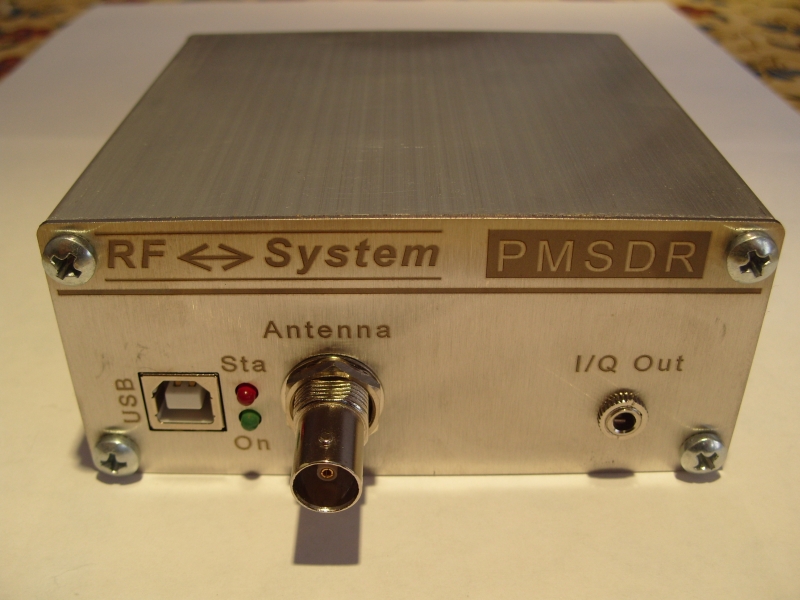

PMSDR bare aluminuim enclosure and stainless steel front plates
